The Emergence and Characteristics of Hard Rail CNC Machines

High Quality Hard Rail CNC Machine Manufacturer Supplier

In the realm of precision machining, the development of Computer Numerical Control (CNC) machines has significantly enhanced manufacturing capabilities across various industries. Among these, the hard rail CNC machine has emerged as a powerful solution, offering precision, durability, and enhanced performance for a wide range of applications.

The Evolution of CNC Technology

CNC technology, which began in the 1940s and 1950s, revolutionized the way machines were operated. Before CNC, machines were manually operated, requiring an operator to directly control the movement of tools. The advent of CNC introduced automation, where a computer controls the machine's movements based on pre-programmed instructions. This shift greatly improved manufacturing precision, efficiency, and the ability to produce complex parts.

While CNC technology became widely adopted, the systems themselves continued to evolve. In particular, the development of hard rail CNC machines stands out as a significant milestone. Hard rails are metal tracks or guides used in the design of the machine's motion system, providing stability and precision during machining processes.

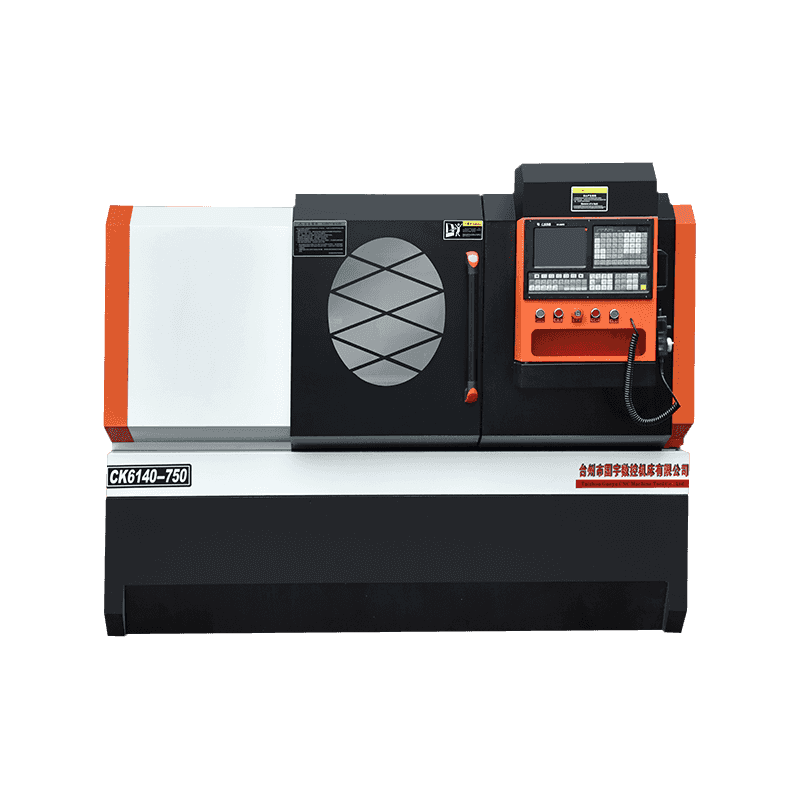

What is a Hard Rail CNC Machine?

A hard rail CNC machine is characterized by the use of rigid metal tracks (rails) that guide the movement of the machine's axes. These rails are typically made from high-quality, hardened steel, designed to withstand the high stresses encountered during machining operations. The term “hard rail” refers to the use of these solid, durable tracks that provide stability compared to traditional guide systems such as linear bearings or plastic components.

The hard rail structure forms the backbone of the machine's movement system, supporting both the linear and rotational motion of the tool or workpiece. This results in a highly rigid and stable machining platform capable of achieving precise cuts and shapes. These machines are typically used in industries that require high tolerance levels, such as aerospace, automotive, and mold manufacturing.

Key Characteristics of Hard Rail CNC Machines

Several key characteristics define hard rail CNC machines, setting them apart from other types of CNC systems. Below are some of the notable features:

1. Enhanced Rigidity and Stability

Hard rail CNC machines are known for their exceptional rigidity. The use of hardened steel rails flexing and vibrations, which can compromise the precision of a cut. The rigid framework ensures that the machine maintains its accuracy even under heavy cutting loads or high-speed operations. This is particularly important in industries where precision is non-negotiable.

2. Improved Load-Bearing Capacity

Because of their solid, robust structure, hard rail machines can handle larger and heavier workpieces without sacrificing accuracy. The rails provide support for the machine's moving parts, which allows for the machining of larger, more complex components with ease.

3. Longer Lifespan

The hardened steel used for the rails not only improves rigidity but also increases the machine's lifespan. These materials are resistant to wear, corrosion, and deformation, ensuring that the machine remains in working condition for longer periods. This durability translates to lower maintenance costs and less downtime, a significant advantage for high-output manufacturing environments.

4. High Precision

The precision of a hard rail CNC machine is one of its significant advantages. The solid structure and advanced motion system reduce any play or backlash in the system, ensuring that the machine can repeat movements with incredible accuracy. This precision is essential when machining parts that must adhere to tight tolerances, such as aerospace components or medical devices.
